Attribute charts monitor counts. The classical charts assume binomial or Poisson counts and set three-sigma limits from a normal approximation. The e-detector versions keep the counting model only as an upper bound on the moment generating function, which is what the guarantee needs:
- the p chart assumes that each trial in a subgroup has a conditional success probability (given the earlier trials) at most, at least or equal to the centre; beyond that, dependence within a subgroup is allowed;
- the c and u charts assume that the counts are sub-Poisson: their moment generating function is at most that of a Poisson variable with the declared rate per unit exposure. Poisson and underdispersed counts qualify; overdispersed counts do not, and for those a bounded class with a declared maximum count is the honest choice.
p chart: daily error rates of insurance claims
Each day a variable number of claims is processed and the claims with errors are counted. The error rate is 5% for the first 22 days and 9% from day 23. The first fifteen days serve as Phase I.
claims <- shewhartr::claims_p
head(claims, 3)
#> # A tibble: 3 × 3
#> day n defects
#> <int> <int> <int>
#> 1 1 134 7
#> 2 2 140 8
#> 3 3 129 6
p_chart <- edetect_p(x = claims$defects[16:30], n = claims$n[16:30],
phase1 = data.frame(x = claims$defects[1:15], n = claims$n[1:15]),
arl = 370, direction = "up")
#> Warning: Alarm at t = 11; 4 later observations were not consumed.
edetect_alarm(p_chart)
#> # A tibble: 1 × 6
#> alarm alarm_time evidence threshold change_estimate n_observed
#> <lgl> <int> <dbl> <dbl> <int> <int>
#> 1 TRUE 11 2092. 370 8 11

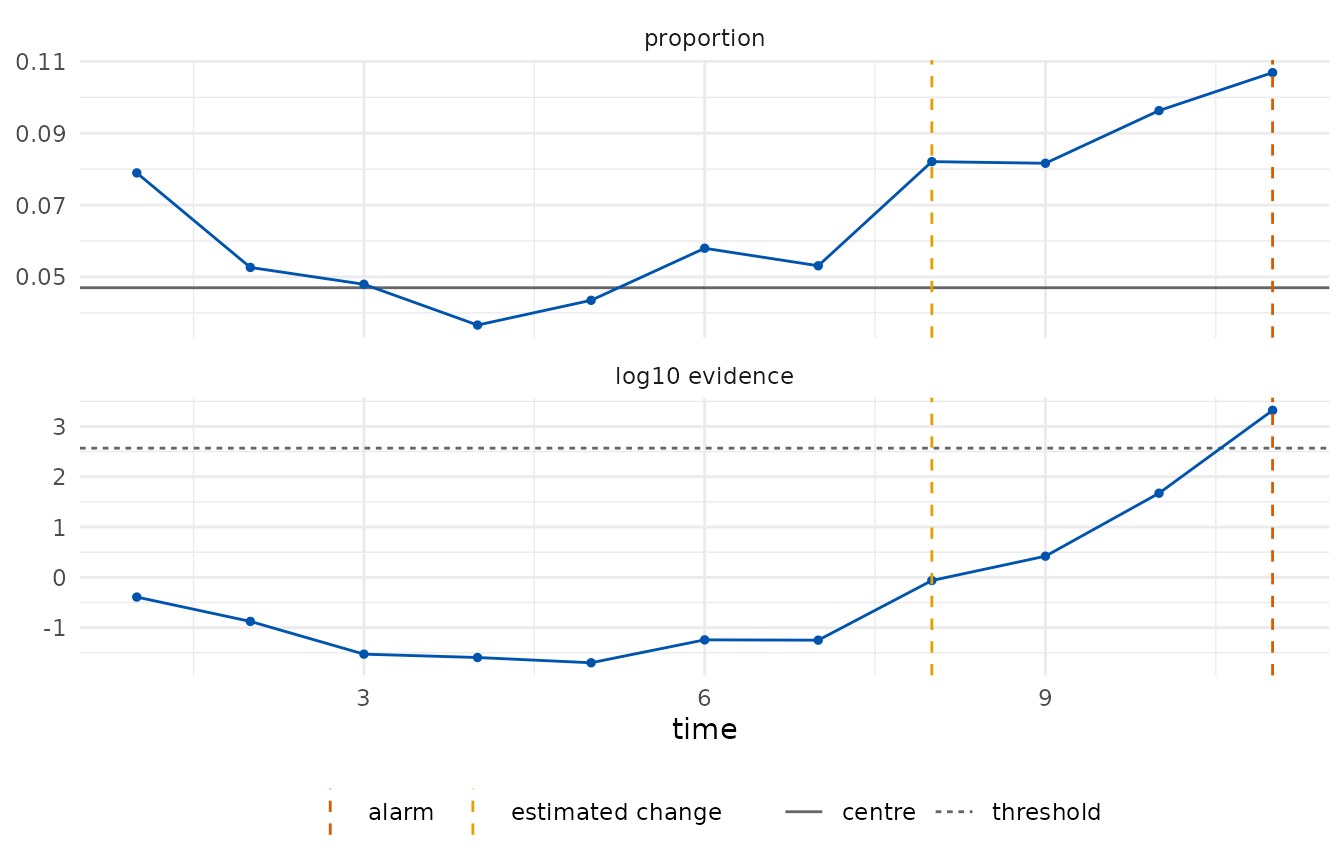

autoplot(p_chart)
The alarm came at the eleventh Phase II day (day 26), three days after the rate rose, and the change is estimated at the eighth Phase II day, that is day 23. The Phase I estimate of the rate (0.047) is recorded as an assumption of the chart.
edetect_report(p_chart)
#>
#> ── e-detector report ───────────────────────────────────────────────────────────
#> Class "bernoulli", centre 0.04698 (phase1); direction "up"; type "sr"; target
#> ARL 370.
#> Observations: 11. Maximum evidence 2090 against a threshold of 370.
#> ✖ Alarm at t = 11 (evidence 2090); estimated change at t = 8.
#>
#> ── Assumptions ──
#>
#> • Pre-change trials have conditional success probability at most 0.04698; other
#> dependence within a subgroup is allowed.
#> • The centre was estimated from 15 Phase I observations and is treated as
#> known.
#> • Observations arrive in time order and none was dropped or imputed.
#> • Under these assumptions the expected time to a false alarm is at least 370,
#> and the probability of a false alarm by any time t is at most t/370.
#> edetect 0.1.0, R version 4.6.1 (2026-06-24)c chart: solder defects on circuit boards
Fifty boards are inspected and the defective solder joints on each are counted; the process is stable with a mean of about 6. The first twenty boards serve as Phase I. A stable process should produce no alarm, and the evidence should stay far from the threshold.
defects <- shewhartr::pcb_solder$defects
c_chart <- edetect_c(defects[21:50], phase1 = defects[1:20], arl = 370, direction = "both")
edetect_alarm(c_chart)
#> # A tibble: 1 × 6
#> alarm alarm_time evidence threshold change_estimate n_observed
#> <lgl> <int> <dbl> <dbl> <int> <int>
#> 1 FALSE NA 13.0 370 17 30
max(tidy(c_chart)$evidence)
#> [1] 17.08296

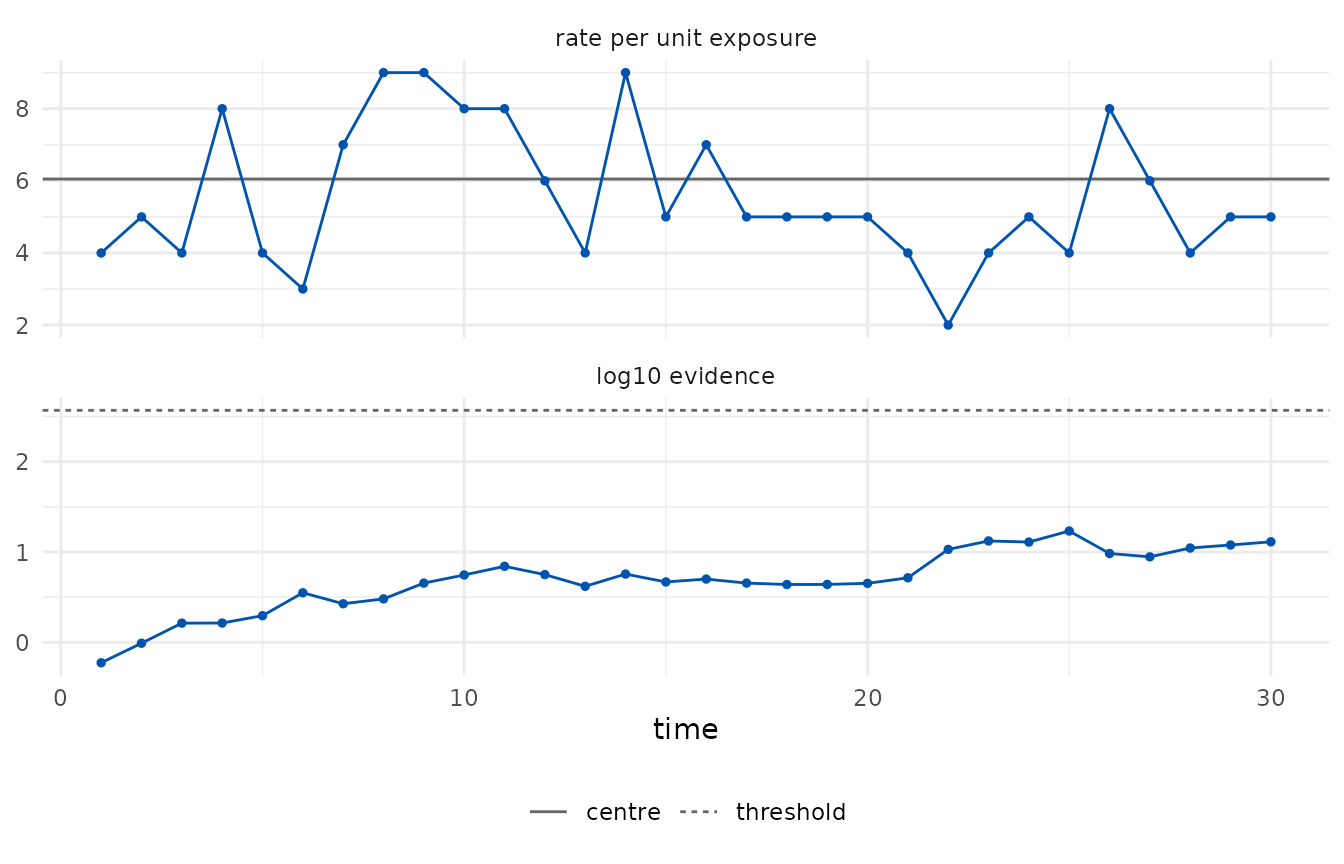

autoplot(c_chart)
u chart: defects per board in samples of unequal size
When boards are inspected in samples of two to four, the count per
sample is monitored per board inspected: the exposure n is
the number of boards. The rate per board is declared from the
specification (6 defects per board).
set.seed(1)
sizes <- sample(2:4, 20, replace = TRUE)
sizes <- sizes[cumsum(sizes) <= 50]
sample_id <- rep(seq_along(sizes), sizes)
samples <- data.frame(n = sizes,
x = as.integer(tapply(defects[seq_along(sample_id)], sample_id, sum)))
head(samples, 4)
#> n x
#> 1 2 9
#> 2 4 26
#> 3 2 10
#> 4 3 13
u_chart <- edetect_u(samples$x, n = samples$n, center = 6, arl = 370, direction = "both")
edetect_alarm(u_chart)
#> # A tibble: 1 × 6
#> alarm alarm_time evidence threshold change_estimate n_observed
#> <lgl> <int> <dbl> <dbl> <int> <int>
#> 1 FALSE NA 5.08 370 13 17

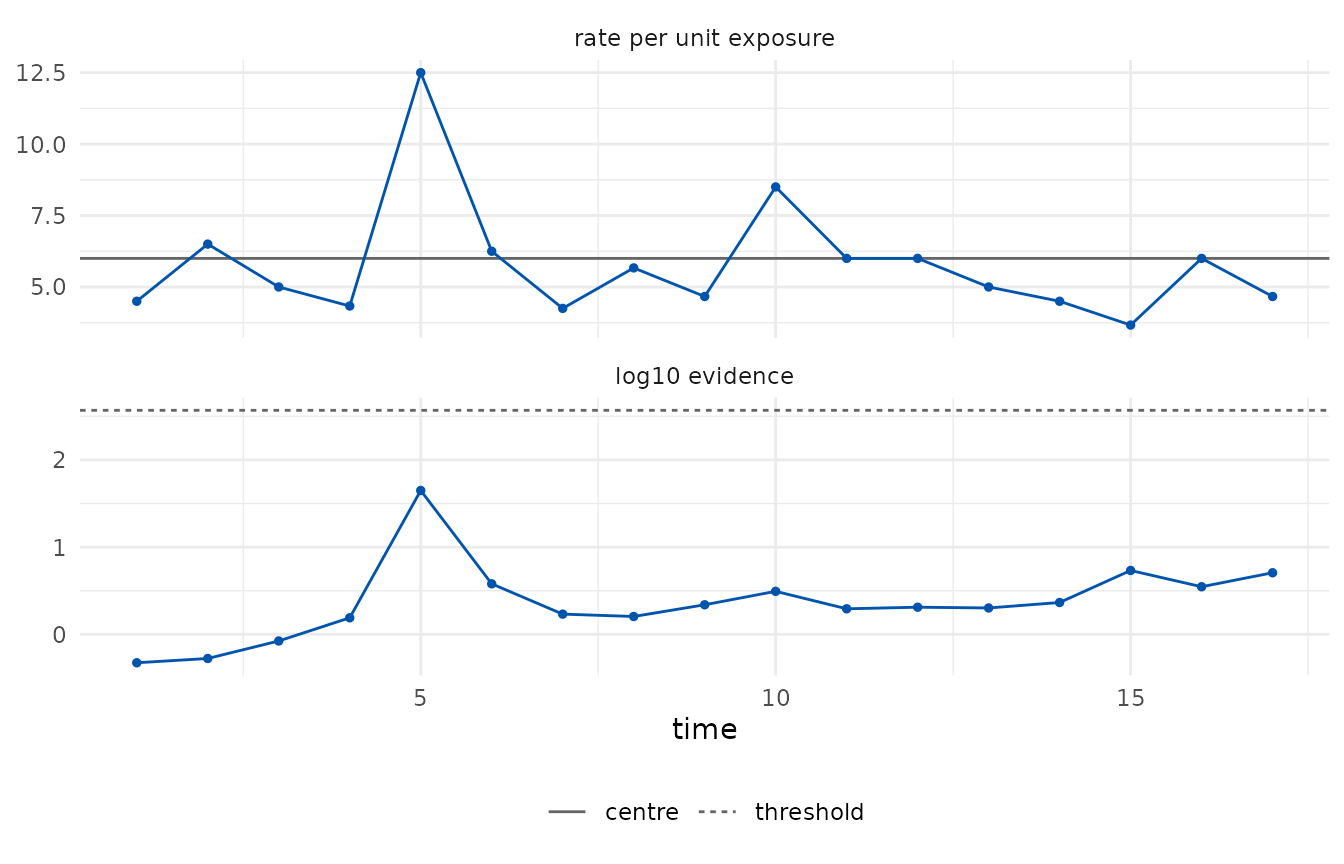

autoplot(u_chart)
What the alarm means, and what it does not
An alarm says that the evidence against the pre-change class reached
the target ARL. It does not say that the process changed: with a target
ARL of 370 a stable process produces, on average, one alarm every 370
observations or more. A missing alarm does not say that the process is
stable either; it says that the evidence has not accumulated yet, which
for small changes can take long. edetect_arl() measures
both sides for a design before monitoring (see the run-lengths vignette).
