Reproducing the paper's benchmark numbers

Source: vignettes/benchmark-reproduction.Rmd
benchmark-reproduction.Rmd

What this article shows

The paper reports only means and maxima. Here we reproduce its headline modularity numbers on the five benchmark networks while keeping the whole distribution over replications, and we compare against igraph’s Louvain and Leiden under a like-for-like multi-restart protocol.

Source. Classical benchmark networks: karate (Zachary 1977, via igraph::make_graph(‘Zachary’)), dolphins (Lusseau et al. 2003), football (Girvan & Newman 2002), polbooks (Krebs, unpublished), polblogs (Adamic & Glance 2005). GML files from the Newman netdata collection (websites.umich.edu/~mejn).

Generated. 2026-05-31 with lcdaGRASP 0.3.1, R version 4.6.0 (2026-04-24) (seed 20260527, 30 reps).

Limitations.

  • alpha_c/alpha_s use package defaults (0.1, 0.3), not the paper’s exact RCL parameters.
  • PolBlogs collapsed directed->undirected keeping all 1490 nodes (giant component = 1222).
  • Reference Q are literature best-known; only Karate is a certified optimum.

Best modularity vs baselines and literature

res <- summ$results
best <- res |>
  dplyr::group_by(network) |>
  dplyr::slice_max(Q_max, n = 1, with_ties = FALSE) |>
  dplyr::ungroup() |>
  dplyr::transmute(
    network,
    best_algo = algo,
    Q_best = round(Q_max, 4),
    Louvain_max = round(Q_louvain_max, 4),
    Leiden_max  = round(Q_leiden_max, 4),
    Q_literature = round(Q_ref, 4),
    kind
  )
knitr::kable(best, caption = "Best LCDA Q over reps vs multi-restart Louvain/Leiden and literature best-known Q.")
Best LCDA Q over reps vs multi-restart Louvain/Leiden and literature best-known Q.
network best_algo Q_best Louvain_max Leiden_max Q_literature kind
dolphins LCDA-GR 1 0.5285 0.5277 0.5285 0.5285 best known
football LCDA-GR 1 0.6046 0.6046 0.6046 0.6046 best known
karate LCDA-GR 1 0.4198 0.4198 0.4198 0.4198 exact optimum
polblogs LCDA-GR 1 0.4190 0.4271 0.4271 0.4271 best known
polbooks LCDA-GR 1 0.5272 0.5271 0.5272 0.5272 best known

Louvain on Karate reaches the optimum under multi-restart

A single-run Louvain can report Q ≈ 0.3715 on Karate, which would suggest a large advantage for any competing method. But this is an artefact of the single run: with 30 restarts the current igraph Louvain reaches the exact optimum, so a like-for-like comparison tells a different story:

res |>
  dplyr::filter(network == "karate") |>
  dplyr::summarise(
    LCDA_best   = round(max(Q_max), 4),
    Louvain_max = round(dplyr::first(Q_louvain_max), 4),
    Leiden_max  = round(dplyr::first(Q_leiden_max), 4),
    single_run_Louvain = 0.3715,
    exact_optimum = 0.4198
  ) |>
  knitr::kable(caption = "Karate: an apparent advantage over Louvain is an artefact of a single-run baseline.")
Karate: an apparent advantage over Louvain is an artefact of a single-run baseline.
LCDA_best Louvain_max Leiden_max single_run_Louvain exact_optimum
0.4198 0.4198 0.4198 0.3715 0.4198

So on Karate the proposed methods match a properly tuned Louvain/Leiden rather than beating it.

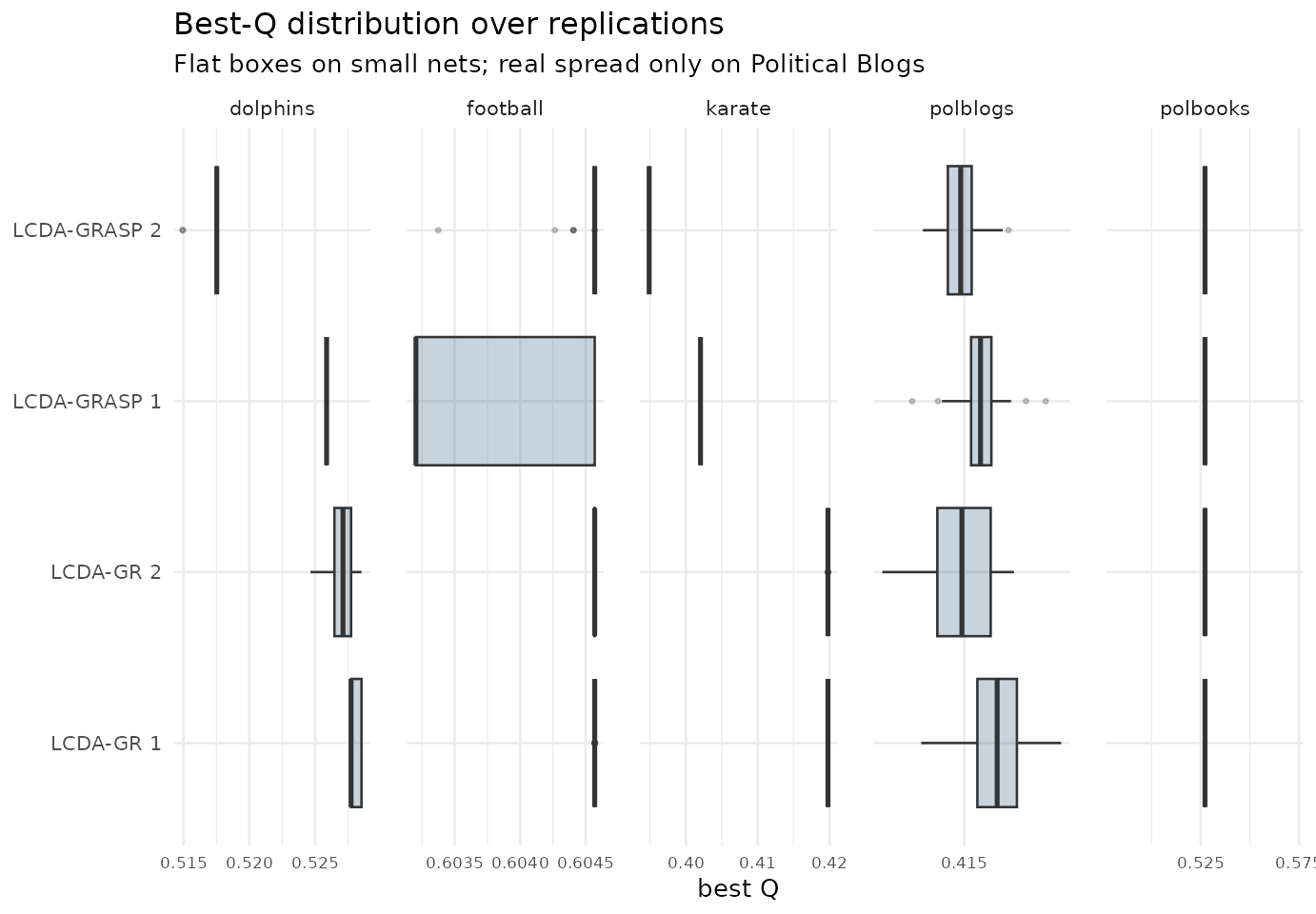

Distribution of Q across replications

Means alone hide that the advertised diversification produces a degenerate Q distribution on the small networks (sd ~ 0) and only spreads on the one large/diffuse network, Political Blogs.

library(ggplot2)
# Map Q to x directly (not via coord_flip, which silently ignores facet free
# scales) so each panel zooms to its own Q range.
ggplot(bench$results, aes(Q, algo)) +
  geom_boxplot(outlier.size = 0.6, fill = "#1f4e79", alpha = 0.25,
               orientation = "y") +
  facet_wrap(~ network, scales = "free_x", nrow = 1) +
  scale_x_continuous(n.breaks = 3, guide = ggplot2::guide_axis(check.overlap = TRUE)) +
  labs(title = "Best-Q distribution over replications",
       subtitle = "Flat boxes on small nets; real spread only on Political Blogs",
       y = NULL, x = "best Q") +
  theme_minimal(base_size = 10) +
  theme(axis.text.x = element_text(size = 6.5), panel.spacing.x = grid::unit(1, "lines"))

bench$results |>
  dplyr::filter(network == "polblogs") |>
  dplyr::group_by(algo) |>
  dplyr::summarise(Q_mean = round(mean(Q), 4), Q_sd = round(sd(Q), 4),
                   Q_max = round(max(Q), 4), .groups = "drop") |>
  knitr::kable(caption = "Political Blogs: all four variants trail the best baseline by ~2%.")
Political Blogs: all four variants trail the best baseline by ~2%.
algo Q_mean Q_sd Q_max
LCDA-GR 1 0.4163 0.0014 0.4190
LCDA-GR 2 0.4150 0.0015 0.4171
LCDA-GRASP 1 0.4156 0.0011 0.4184
LCDA-GRASP 2 0.4149 0.0009 0.4168

Takeaways

  1. LCDA-GR reproduces “match best known” on the four small networks.
  2. Multi-restart matters: Louvain on Karate reaches 0.4198 (the optimum) over 30 restarts, so single-run baselines overstate any advantage.
  3. Coverage gap: on the only large network the methods trail Louvain/Leiden by ~2% — the advantage is benchmark-dependent.

Reproducibility and data provenance

The numbers above are read from datasets shipped with the package; nothing is re-run at build time. Each dataset records the package version that generated it (not necessarily the version you installed: the generators are re-run only when the algorithms change), the release it first shipped in, and a SHA-256 checksum matching inst/extdata/SHA256SUMS:

do.call(rbind, lapply(c("repro_benchmarks", "repro_summary"), lcda_provenance))
#>            dataset generated_by generated_on first_release shipped_in
#> 1 repro_benchmarks        0.3.1   2026-05-31         0.3.1      0.3.2
#> 2    repro_summary        0.3.1   2026-05-31         0.3.1      0.3.2
#>                                                             sha256
#> 1 2e086d88f2ebd85a67eec35c9bf6c9da1515d8f59e8b57f33ccc76ad7af0aba5
#> 2 1c69543fc7808ea9cd9c4b410b4fb74d1f5d7ee2410a7c2ab1fd8695d5ee091a

Regenerate with data-raw/10_repro_benchmarks.R (single documented seed, 30 restarts).

Honest reading. On the four small networks the proposed methods match a fully tuned multi-restart Louvain/Leiden (they reach the exact optimum where one is known), and they trail by ~2% on the only large network (Political Blogs). The contribution is the joint leader designation at no modularity cost, not a modularity win.
