library(shewhartr)
library(ggplot2)
library(dplyr)

This case study reconstructs the use case that originally motivated the package: monitoring daily COVID-19 mortality in Recife, capital of Pernambuco state, Brazil, during 2020. The challenge is that epidemic curves are non-stationary by construction — they grow, peak, and recede. A classical Shewhart chart applied naively to the raw counts would either miss the early acceleration or fire constant false alarms during the descent.

The right tool is a regression-based control chart with automatic phase detection: fit a model to the trend, place limits around the fit, and let runs rules announce when the trend itself has changed.

The data

cvd_recife is a tibble shipped with the package. (Run source("data-raw/build_all.R") once if the dataset is not yet built locally.)

data(cvd_recife)
head(cvd_recife)
#> # A tibble: 6 × 3
#>   date       new_deaths    .t
#>   <date>          <int> <int>
#> 1 2020-03-28          4     1
#> 2 2020-03-29          0     2
#> 3 2020-03-30          0     3
#> 4 2020-03-31          0     4
#> 5 2020-04-01          1     5
#> 6 2020-04-02          1     6

Columns: date, new_deaths, .t (an integer 1..N row index, useful when a model needs a numeric predictor).

A first attempt: classical I-MR

fit_imr <- shewhart_i_mr(cvd_recife,
                         value = new_deaths,
                         index = date)
broom::glance(fit_imr)
#> # A tibble: 1 × 8
#>   type      n phase   sigma_hat sigma_method n_violations n_rules pct_violations
#>   <chr> <int> <chr>       <dbl> <chr>               <int>   <int>          <dbl>
#> 1 i_mr    279 phase_1      5.17 mr                    139       2          0.448

The chart fires repeatedly along the entire ascending limb of the first wave — every “violation” is the chart noticing that today is worse than yesterday, which is true and is also exactly what we already knew. The classical chart is the wrong tool: it reports violations of stationarity, not violations of the underlying public health story.

The right tool: regression chart with phase detection

fit <- shewhart_regression(
  cvd_recife,
  value      = new_deaths,
  index      = .t,
  model      = "loglog",
  phase_rule = "we_seven_same",   # legacy WE rule used in the original analysis
  rules      = c("nelson_1_beyond_3s", "we_seven_same"),
  lower_bound = 0                 # death counts cannot go negative
)
broom::glance(fit)
#> # A tibble: 1 × 8
#>   type        n phase sigma_hat sigma_method n_violations n_rules pct_violations
#>   <chr>   <int> <chr>     <dbl> <chr>               <int>   <int>          <dbl>
#> 1 regres…   279 phas…      4.37 mr                     10       2         0.0358
length(fit$fits)        # number of phases
#> [1] 9

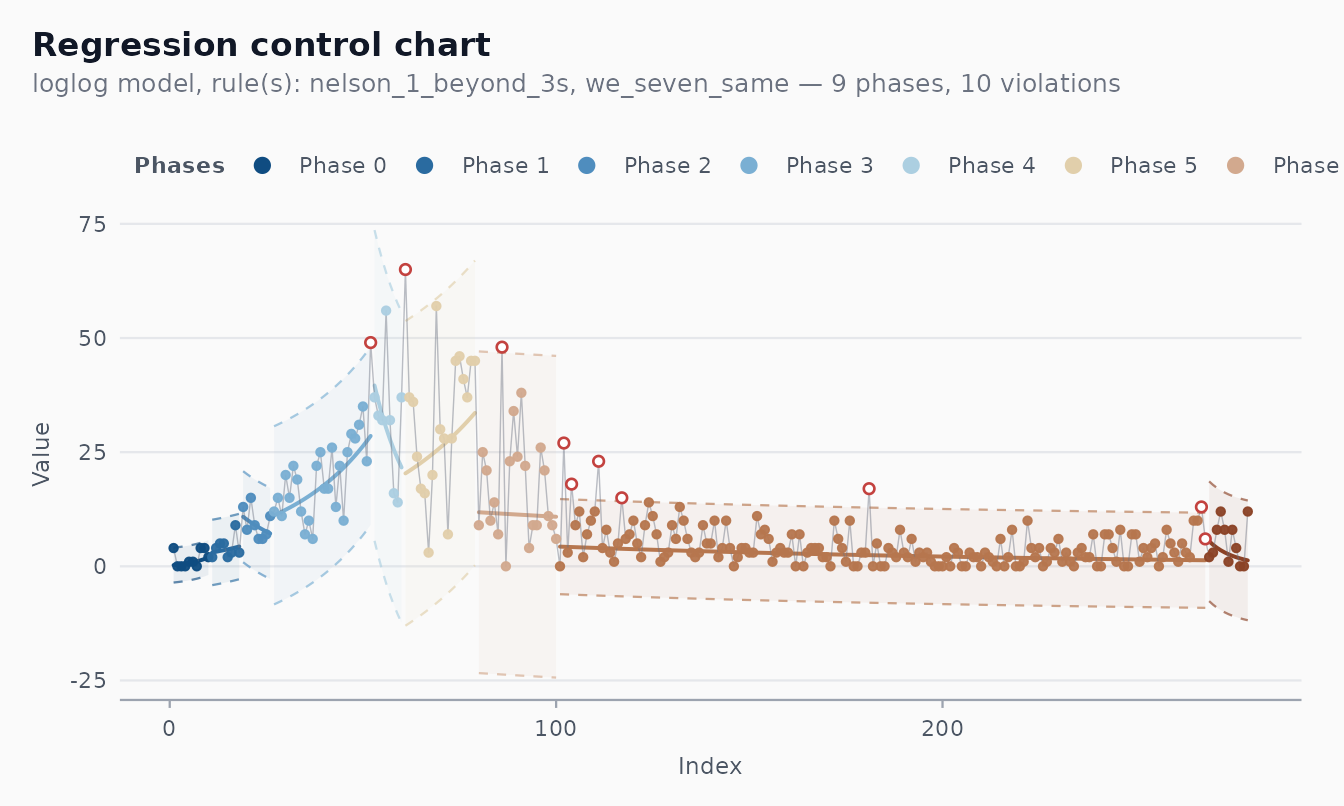

autoplot(fit)

What the chart now does:

The centre line follows the fitted trend, period by period.
Limits move with the centre line.
Violations are points that depart from the expected trajectory, not just from a constant baseline.
Phase changes mark candidate inflection points: places where the trend itself has shifted (a new wave, a containment measure taking effect, a vaccination campaign starting).

Why log-log?

The model = "loglog" choice applies the transform $\log(\log(y/\alpha + 1) + 1)$ to the response before fitting a linear trend. This is more aggressive than log — it stabilises variance for very right-skewed, heavy-tailed counts. For COVID mortality counts, where day-to-day variability scales sharply with the level, the log-log scale gave the cleanest residuals in the original analysis. Run shewhart_box_cox() on your own series to let the data choose:

shewhart_box_cox(cvd_recife$new_deaths + 1)$lambda_hat
#> [1] 0

Read the maximiser as a rung on Tukey’s ladder of powers: near 1, no transformation (model = "linear"); near 0.5, square roots; near 0, logs (model = "log"); below 0, something stronger than logs. The log-log scale belongs to that last group: it compresses more than a single log, so it is the defensible choice only when $\hat\lambda$ sits at or below 0 and the log fit still leaves the residual spread growing with the level. A maximiser near 0.5 calls for a weaker transform than log, never for log-log. The model = "auto" setting applies this reading per phase, choosing between log ( $\hat\lambda < 0.25$ ) and linear.

For the charts of the two 2020 articles by Ferraz et al., rebuilt with the log-scale limits of the original method, see vignette("article-charts"); for the day-by-day replay of their seven-point rule and a Monte Carlo study of it, see vignette("prospective-replay").

Methodological caveats

A regression chart applied to time-series counts pushes against several assumptions:

Independence. Daily mortality counts are autocorrelated (the same person dying tomorrow versus today is rare; serially correlated under-reporting and reporting delays are common). Use shewhart_diagnostics() to inspect the residual ACF; if the autocorrelation is strong, consider an ARIMA-based monitoring scheme instead (a topic for a future package release).
Right model. A piecewise-linear log-scale fit is a heuristic. More principled epidemic-monitoring approaches use SEIR-type models, the renewal equation, or compartmental Bayesian filters (Cori et al. 2013; Flaxman et al. 2020). The package’s regression chart is best understood as a signal-detection layer on top of whatever forecasting model one uses.
Reporting heterogeneity. Counts of “deaths today” usually reflect reports received today, not deaths occurring today. Lagged corrections produce sawtooth patterns that look like violations but are administrative.

A note on the package’s history

The original v0.1 of Shewhart (now shewhartr) was built specifically for this kind of analysis, in collaboration with the epidemiology team monitoring COVID-19 in Recife. The transformation choices, the 7-points-in-a-row rule, and the start-base / phase-detection structure were all calibrated for daily mortality counts. That heritage is preserved here as one application among many, rather than as the package’s organising principle. For everyday SPC, prefer the classical chart families and the cleaner default rule (Nelson 2 — 9 points).

References

Perla, R. J., Provost, S. M., Parry, G. J., Little, K., & Provost, L. P. (2020). Understanding variation in reported covid-19 deaths with a novel Shewhart chart application. International Journal for Quality in Health Care, 32(10), 685-688. doi:10.1093/intqhc/mzaa069. — the methodological blueprint (a hybrid C/I chart in phases) for the regression chart with phase detection used in this case study.
Ferraz, C., Petenate, A. J., Leite Wanderley, A., Ospina, R., Torres, J. E. M., & Peruzzi Moreira, A. (2020). Gráficos de Shewhart para monitoramento de COVID-19 na cidade de Recife. In Anais do LII Simpósio Brasileiro de Pesquisa Operacional (SBPO 2020), João Pessoa-PB. — the Brazilian adaptation, the source of the cvd_recife analysis and of the legacy 7-points-in-a-row rule (we_seven_same) used above.
Cori, A., Ferguson, N. M., Fraser, C., & Cauchemez, S. (2013). A New Framework and Software to Estimate Time-Varying Reproduction Numbers During Epidemics. American Journal of Epidemiology, 178(9), 1505-1512.
Flaxman, S. et al. (2020). Estimating the Effects of Non-Pharmaceutical Interventions on COVID-19 in Europe. Nature, 584, 257-261.
Box, G. E. P., Jenkins, G. M., & Reinsel, G. C. (2008). Time Series Analysis: Forecasting and Control (4th ed.). Wiley.
Mandel, B. J. (1969). The Regression Control Chart. Journal of Quality Technology, 1(1), 1-9.
